Mechanical Drafting

From 3D Models to Detailed Technical Drawings

EN-MME Design Office translates validated engineering models into detailed and traceable manufacturing drawings compliant with ISO GPS standards.

We provide our users with production-ready documentation: This includes producing accurate documentation and drawings aligned with ISO GPS standards, following structured workflow implemented in our PLM system.

Every step taken at the Design Office is engineered for traceability, compliance, and seamless integration with manufacturing.

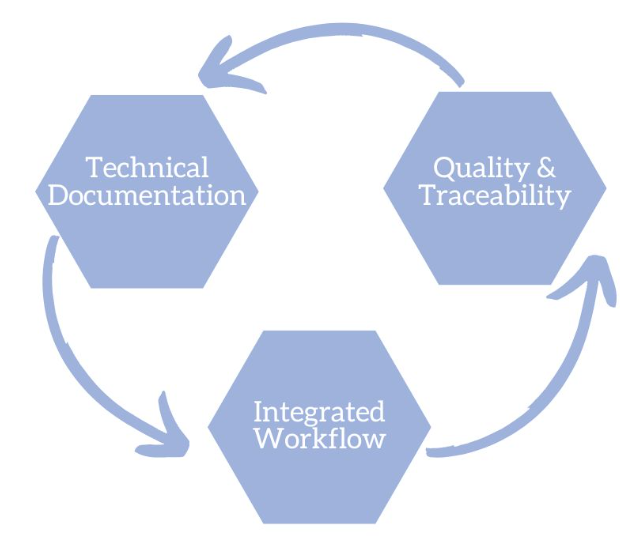

Steps taken to go from 3D Models to Precise Technical Drawing

01

Technical Documentation

We create detailed production drawings implementing up-to-date ISO GPS tolerances to ensure transmission of manufacturing information in the most reliable way. Each project includes an integrated bill of materials managed through the PLM system to ensure traceability. Revision control and approval workflows are implemented to maintain design integrity and support collaboration.

02

Integrated Workflow

A direct link between the EN-MME Design Office and EN-MME Workshop ensures efficient communication and project follow-up. Collaboration with CERN integration and the Layout Database teams grants coherence and easy implementation with CERN installation complex.

Real-time feedback from manufacturing supports continuous and quick design improvement.

03

Quality & Traceability

Internal verification is performed before each release to ensure all drawings meet applicable standards and specifications. Approvals and revisions are managed through a PLM-controlled system.

The Design Office provides dedicated support for procurement, both internal and external, providing suitable and consistent documentation.
